4K Inspection Made Easy

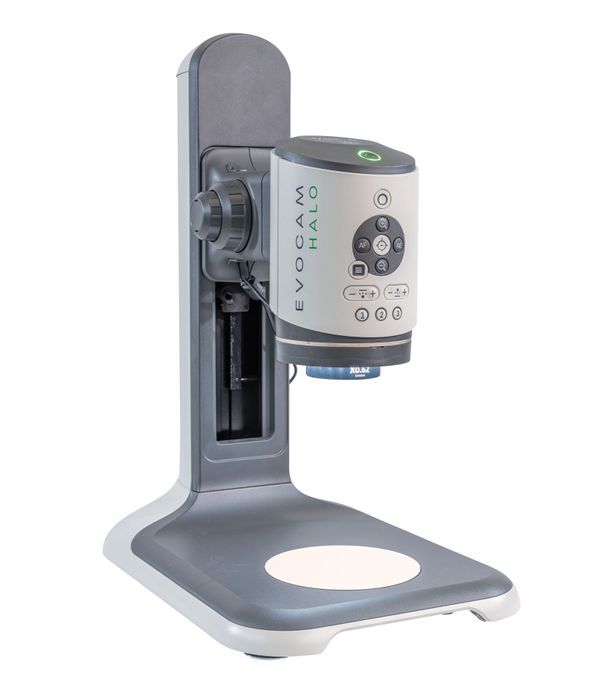

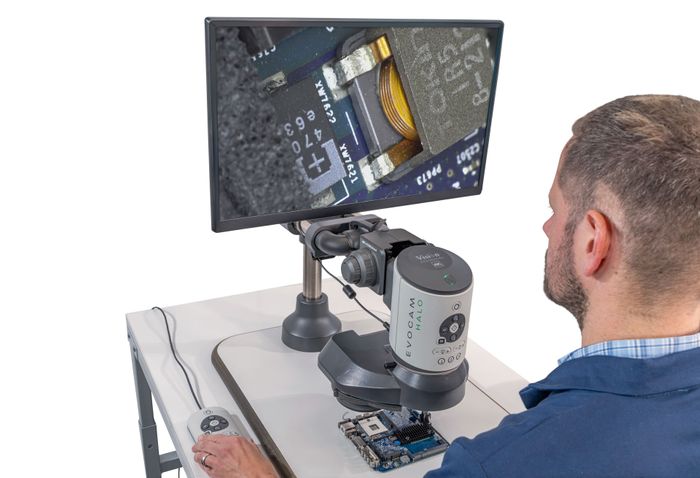

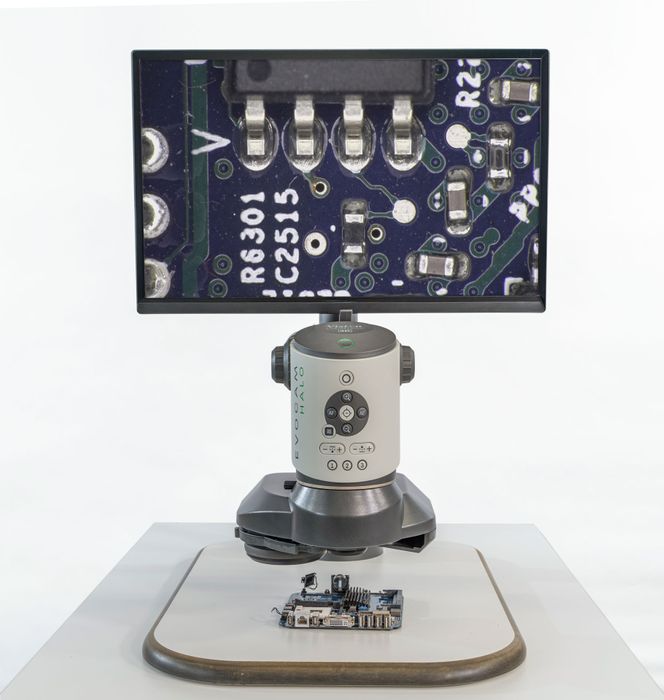

EVO Cam HALO digital microscope combines stunning 4K image quality with advanced, adaptive illumination to deliver unmatched precision and versatility for inspection and measurement tasks.

Choice and precision

EVO Cam HALO offers configurable options to optimise workflows, meet inspection requirements, and deliver insightful reporting. Share 4K images, videos, or reports with colleagues, suppliers, customers, and regulators quickly and easily across networks.

Four times more detail

4K image sensor delivers four times more detail than full HD cameras. High Dynamic Range (HDR) ensures important details are not lost in dark or light areas of the image.

Exceptional image resolution and camera control

• Image capture in JPEG, PNG, BMP and TIFF formats
• 20:1 zoom ratio, with magnification range 3x to 330x
• Control of lighting from above and below
• 360-degree Oblique and Direct Viewer (ODV)
• 3 customisable presets
• Measure, analyse, report

  Intelligent features

  Auto Lens ID
  Easy to use, intelligent lens mount automatically adjusts magnification display providing accurate inspections every time.

  Quick-clip ring-light
  Intelligent clip-on ring-lights automatically save and recall settings when connected. Quadrant controlled white, white and UV and wide area panel lights fit directly to the camera and are changed in seconds.

  Measure, analyse, report

  HALO’s ViPlus software provides real-time insights, making it easier to detect anomalies and patterns that would otherwise go unnoticed. With intuitive image capture, measurement, and analysis tools, the software delivers accurate and actionable results, enabling faster, data-driven decisions. This supports more efficient workflows and increased confidence in the results.

  360-degree Oblique and Direct Viewer (ODV)

  Switch on an extra dimension with direct and rotating oblique views of your subject. Switch from a direct perpendicular view to a 34° oblique angle, and rotate around the subject to enhance inspections. The oblique view allows easy inspection of joints, intersections, raised components, and the inside of holes.

  Range of lighting

  The best images require the best lighting, and HALO comes fully equipped. Quadrant-controlled top lights with white and UV, sub-stage illumination, and specialised EPI and contrast-enhancing illuminators ensure optimal performance.
