Energy efficiency and potential savings with the LeakCam 600

In industrialised countries, around 10% of total industrial electricity consumption is used for compressed air generation, in Germany the figure is as high as 14%. Leakages represent a significant loss of energy. Most compressed air systems have losses in the range of 20% to 40%, in poorly maintained systems even more than 60%. Compressed air leaks often waste 8760 hours of energy per year and extend the operating times of compressors, which also shortens maintenance intervals.

Repairing compressed air leaks therefore sustainably reduces energy consumption, provides a hedge against rising electricity prices and reduces the load on the compressors. In some cases, individual compressors can even be switched off after the leakages have been repaired or production can be expanded with the freed-up capacity.

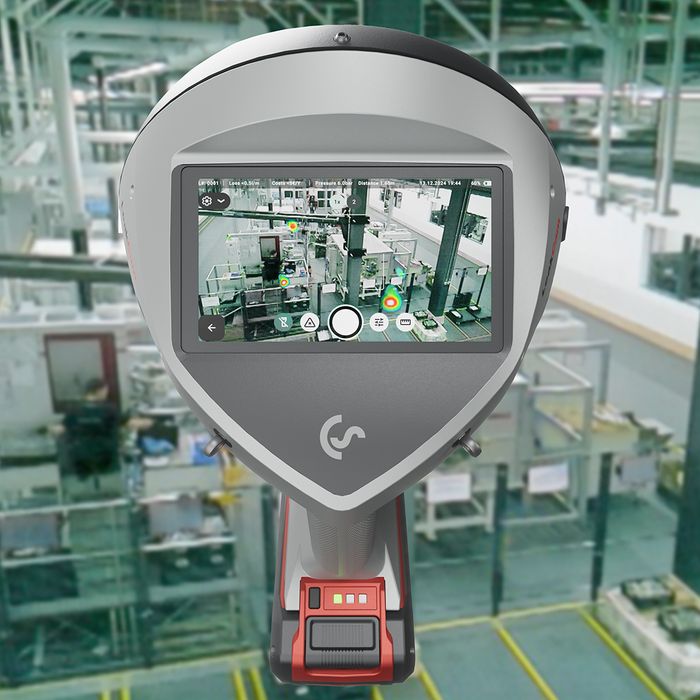

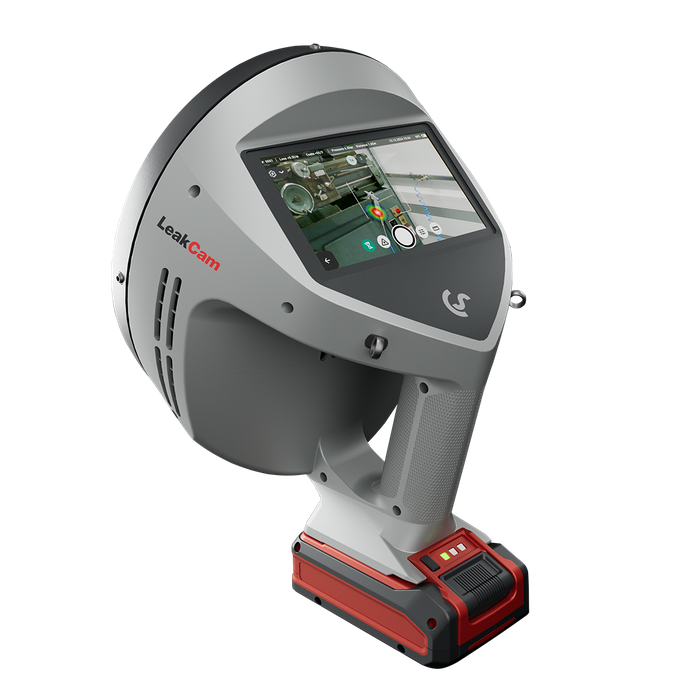

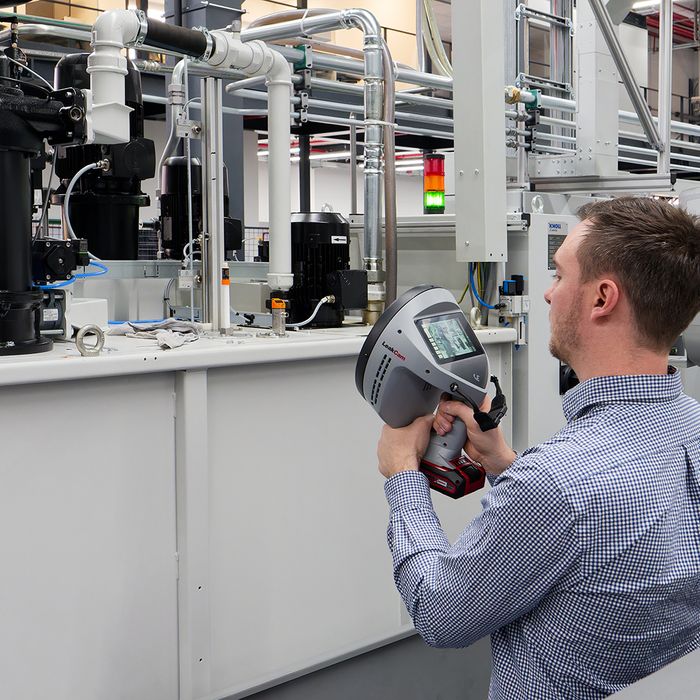

Advantages of the LeakCam 600:

• The patented Power Beam Forming algorithm - enables simultaneous detection and visualisation of multiple leakages from long distances
• 64 ultrasonic microphones arranged at a maximum distance of 20 cm enable precise localisation of leakages from a distance of up to 20 metres for a €10/year compressed air leak.
• Customisable frequency range from 2 to 80 kHz for accurate leak detection, even in noisy production facilities, sources of interference are effectively masked.
• Intuitive operation without the need for training.
• 5" HD display and 13 megapixel camera for clear, detailed visualisations.
• Ergonomic design with one-handed handle, neck strap and fastening eyelets for extended use.
• Replaceable batteries for up to 8 hours of operating time, enabling uninterrupted work.
• Estimation of leakage volume in l/min or cfm and calculation of annual costs.
• Precise focussing and leakage rate determination thanks to integrated laser distance module.
• Compatibility with Leak Reporter V2 and Cloud-solution software for advanced analysis and documentation.
