NTN-5K
)
)
)
The MEAN WELL NTN-5K Series inverter is a robust solution for managing remote power needs in off-grid environments. This 5KW pure sine wave inverter is designed for industries requiring reliable power away from traditional grids, suitable for isolated industrial sites, mobile units and residential backups.
Built on the NTS/NTU line, the NTN-5K integrates AC-DC charging and DC-AC inversion with an AC bypass feature, creating a compact, uninterruptible power supply system. It includes a 4520 W AC-DC charger that supports maximum power point tracking (MPPT) for efficient operation with renewable energy sources like solar panels.
This inverter scales up to 30 kW, accommodating various operational needs with an AC bypass function that ensures continuous power by switching to alternative sources as needed. It emphasises sustainability, enabling a reliable power setup in challenging environments.
The NTN-5K outputs a true sine wave with less than 3% total harmonic distortion, safeguarding sensitive equipment and minimising power quality issues. Its surge capacity peaks at 10 kW, and it includes comprehensive protection against electrical hazards such as over-voltage and overheating.

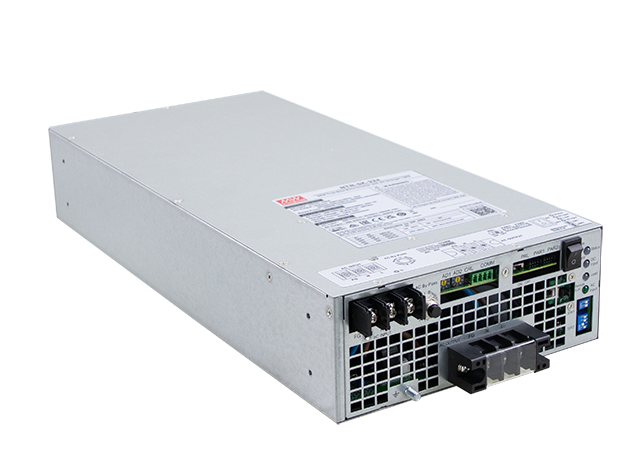

The compact 2U chassis fits standard 19-inch racks for easy integration and can expand to a three-phase configuration by linking three units. Enhanced with Modbus and CAN bus protocols, the system facilitates remote monitoring and control.
Ideal for industrial applications, the NTN-5K powers essential machinery and security systems at remote sites. It also serves as a dependable power source for vehicles, boats, and provides reliable backup for residential and commercial settings, supporting continuous operations during outages. This inverter is an essential component for anyone needing flexible and continuous power solutions, especially in sustainable energy projects.
