Gardner Denver saves almost £20,000 per year with machine monitoring
)

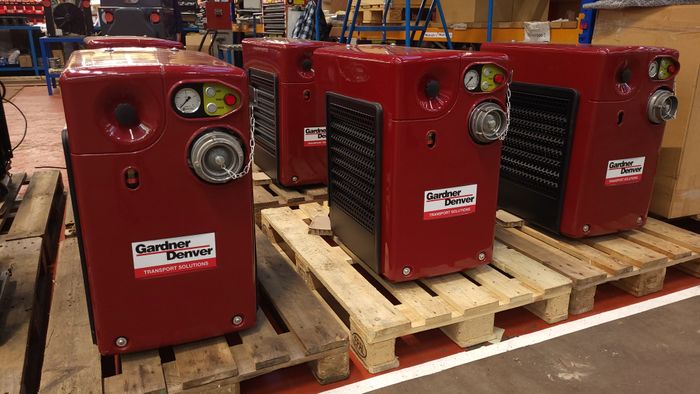

Gardner Denver, a key part of Ingersol Rand Transport Solutions, specializes in manufacturing and assembling truck-mounted compressors, blowers, and vacuum pumps for the transport industry.
With a combination of in-house production and the pressure to meet both customer and internal demand, they rely on six machining centres to produce most of their compressor components from cast or billet material.
While they had maintained good productivity, the company sought a more accurate way to track their performance over time.
By implementing TrackMyMachines on their shop floor, Gardner Denver gained valuable insights into where the greatest opportunities for productivity improvement lay.
Add more offsets to the machine tool
Track my machines showed that a certain VMC with zero point work holding and specialised cutting tools still had considerable downtime from work setting.
Further investigation showed that the machine tool software could be upgraded to hold more tool data. This would reduce the setting time per month, increase productivity and reduce the risk allocated with operator input.
Cost savings: 10 hours/month saves £7200 a year
Identification of cycle with too many tool changes
It’s obvious with TrackMyMachines where the tool changes are in your cycle. After finding the cycle with lots of tool changes, the component was analysed and bespoke cutting tools were designed to reduce the number of tools required. As a result the cycle times were reduced.
Cost savings: £6800 per year
Spot non-conforming castings with spindle power usage
In an FMS system, where multiple types of components are loaded into a pallet system, the inconsistent tool life of a particular tool has been a major concern. In trials the tool life was acceptable, but in production it was unpredictable. It was hard to pinpoint a single cycle that was drawing a larger spindle power than expected when the system is automated and run lights-out.
Carl Parry, Manufacturing Engineer at Gardner Denver explains how he identified the problem: “Track my machines was so simple in showing where the spike in spindle power was, which was then quickly tracked to a particular component and operation. That component was identified as pulling too much power when compared to similar components."
"Upon investigation we identified that the initial cutting parameters were incorrect due to non-conforming castings. An additional 5mm of material was present, This was the cause for tool life reduction and tool breakage. Initial tool life was increased after adding additional passes to the machine program."
"Because the machine tool has numerous components due to the FMS setup it was very hard to pinpoint the due to the different number of times this particular cutting tool is utilised. Without TrackMyMachines, it would have taken an operator to be present and alert when that particular cycle was being run.”
Tool life increase: 40% Cost saving: £4900 per year
Total cost savings £18,900 per year
